High Efficiency Good Price Stainless Steel Dynamic Stirring Essential Oil Extract Tank

Customization:	Available
After-sales Service:	Provide on-Site Maintenance
Certification:	CE, GMP, ISO

Basic Info.

Model NO.50L

ConditionNew

CustomizedNon-Customized

Extraction MethodSteam Distillation

Machine TypeUltrasonic Extraction Machine

MaterialStainless Steel

Pressure ControlCustomizable Pressure

Temperature ControlCustomizable Temperature

Voltage220V

Warranty1 year

Product NameEssential Oil Extractor Distiller

Condensation AreaAbout 0.7

Finished Dosage FormLiquid

PrecisionHigh Precision

ComputerizedNon-Computerized

TypeHerbal Extractor

Transport PackageWooden Box Packing

Specification50L

HS Code8419409090

Production Capacity1000

Packaging & Delivery

Package Size200.00cm * 120.00cm * 220.00cm

Package Gross Weight800.000kg

Product Description

Our small plant essential oil extraction equipment is suitable for the co-water or water-proof distillation extraction process of conventional oils and aromatic oils in plant branches, flowers, grasses and animal materials with higher oil content. The structure of the extraction equipment is exquisite and the operation is very simple.

Equipment and production cost is low
Simple and easy to use
Stable and reliable performance

Detailed Photos

High Efficiency Good Price Stainless Steel Dynamic Stirring Essential Oil Extract Tank

Product Parameters

Model	GK-50L	GK-100L	GK-200L	GK-300L
Capacity(L)	50L	100L	200L	300L
Voltage(V)	380V, 50HZ (3 phase 220V/480V optional)
Power(Kw)	7.5kw	12kw	16kw	24kw
Jacket Pressure (Mpa)	0.3mpa
Tank Pressure (Mpa)	0.09mpa
Extraction temperature(ºC)	≤100 ºC
Heating area (m2)	0.72m2	0.98m2	1.38m2	1.65m2
Lifting system	manual
Cooling Tower	20T		30T

Stainless steel extraction basket, corrosion resistant & easy to clean.
Crane system to make sure easier operation and less labor, automatic lifting is optional.
Automatic control, operation is simple and flexible, and one person can easily complete the entire production.

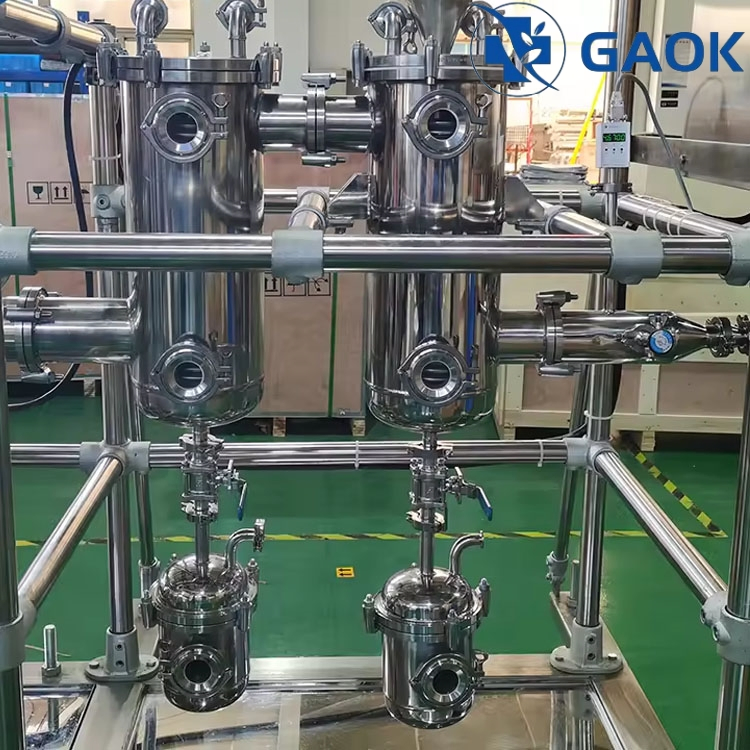

Lab grade glass pipeline diameter < 20mm, special-structured oil-water separator is used to facilitate the separation and collection of essential oils.
The lid of extraction tank is quick-opening design, easy to open & close lock.
Ball valve design, continuous operation.
Lab - pilot - industry customization with greatest flexibility.

Extraction Process

01

Charging plant materials + water into essential oil extracting tank.

02

By steam distillation or water distillation, the steam passes through plants material and vapourises oil.

03

Mixtures of steam and oil vapors go into condenser (chilling unit).

04

After cooling, mixture of steam and oil vapours formed.

05

Separation of oil and water by separator.

06

Achieve essential oil.

07

Dregs discharging.

Certifications

Make Your Research More Accurate & Efficient

We design and manufacture extraction production lines for users in need of a simple device for small amounts of extract, as well as more complex equipment for industrial use. Our offering includes preprocessing (dryer/grinder), coating machines, packaging machines, and process systems where the substance used as a solvent is either a volatile hydrocarbon (butane extraction), an alcohol (alcohol extraction), or CO2 (supercritical extraction). Given the investment cost, complexity of use, and extract quality, each system has distinct advantages and disadvantages.

Frequently Asked Questions

What types of plants are suitable for this extraction equipment?

This equipment is ideal for extracting conventional and aromatic oils from plant branches, flowers, grasses, and animal materials with higher oil concentration.

What extraction methods does the machine support?

The machine supports co-water or water-proof distillation methods (steam distillation) to vaporize and extract essential oils effectively.

Is the lifting system automatic or manual?

The standard system features a manual crane system to reduce labor during operation, and automatic lifting configurations can be customized upon request.

How is the essential oil separated from water?

The system utilizes a special-structured oil-water separator with lab-grade glass pipelines (diameter < 20mm) to achieve clear separation and collection of the extracted oil.

Can I customize the capacity and voltage configurations?

Yes, we offer customization options ranging from lab-scale (50L) to pilot and industrial scales (up to 300L or more). Voltage settings like 380V or optional 220V/480V are available to match local grid systems.

What is the construction material of the extractor?

The equipment is constructed using high-quality stainless steel, including a corrosion-resistant and easy-to-clean stainless steel extraction basket.
