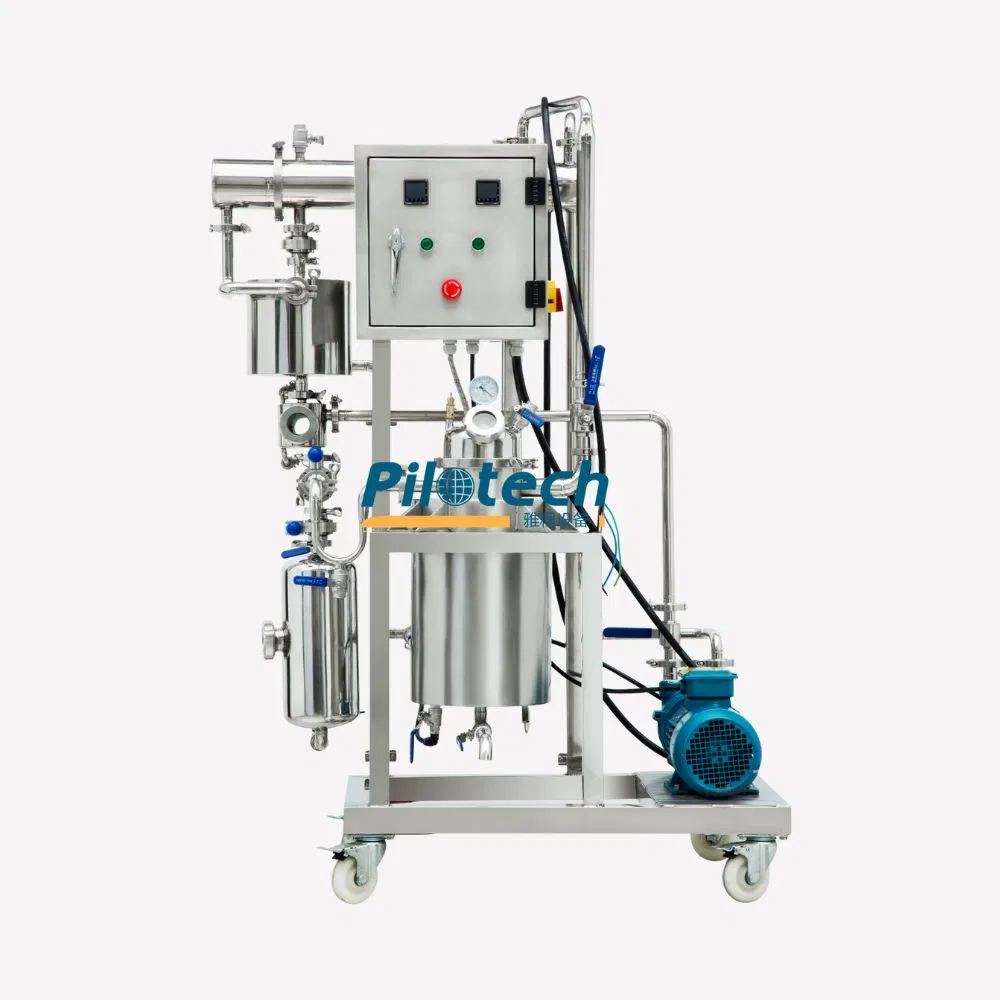

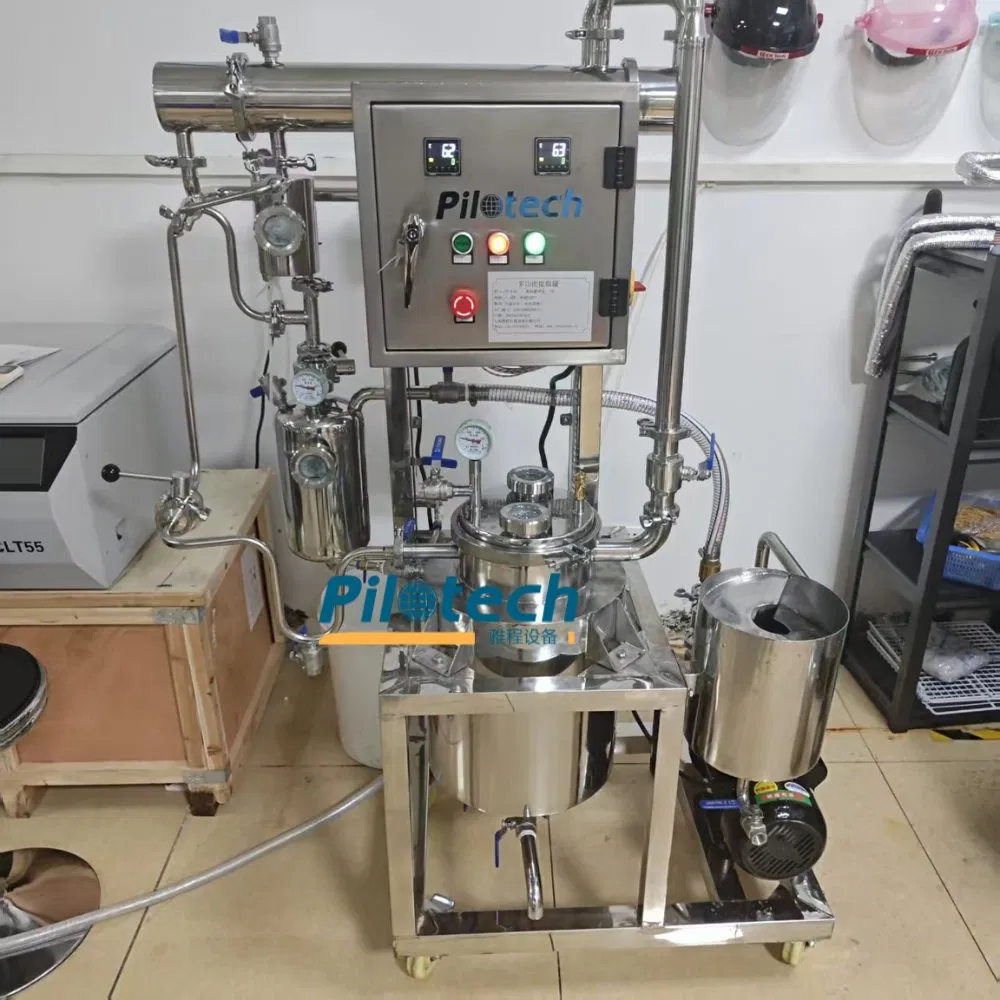

YC-010 Lab multi-functional extracting and concentration tank

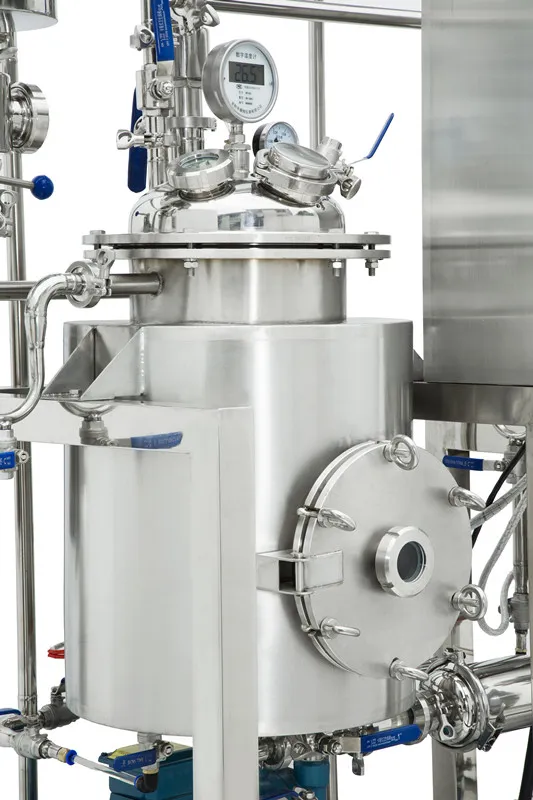

Our Lab multifunctional extraction, concentration and recovery machine is developed on the basis of international research on similar products. It can be used for the extraction/concentration of herbal materials and natural products (water) and the recovery of volatile aromatic oils. The equipment consists of extraction tank, reflux condenser, oil-water separator, filter screen, heater, recovery tank, temperature controller, stainless steel bracket and connecting pipe valve, instrument and so on.
Functions: Atmospheric extraction (on-line ultrasonic extraction function is optional), negative pressure hot reflux water extraction, atmospheric concentration, vacuum concentration under reduced pressure.
| Sr.no | Parameter | YC-010 Lab Extraction Tank Value | Features |
|---|---|---|---|
| 1 | Power | 4500W |
1. Low noise, small footprint (covers an area of less than one square meter), with comprehensive functions. 2. Capable of hot reflux extraction, vacuum low-temperature extraction, vacuum low-temperature concentration, and volatile aromatic oil recovery. 3. Built-in SUS304 stainless steel and low-noise water ring vacuum pump has little impact on the laboratory environment. 4. Suitable for the extraction of active ingredients from traditional medicine and natural products. 5. Suitable for vacuum low-temperature extraction and concentration of materials. |
| 2 | Voltage | 220V | |
| 3 | Extraction tank volume | 10L | |
| 4 | Machine Material | SUS 304 Stainless Steel | |
| 5 | Evaporation chamber vacuum degree | 0~-0.08MPa | |
| 6 | Precision of temperature | ±2℃ | |
| 7 | Cooling water | 0.5t/h | |
| 8 | Cooling water pressure | <0.3Mpa | |
| 9 | Coiled tube condenser area | 0.5m² |
Our extract machine has a good performance for natural herb extraction. It is suitable for extracting and concentration of herbal liquid, tea, fruit juice and the recovery of solvents in research institutions, universities, hospitals and the food industry.
Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduces energy consumption and improves overall efficiency.

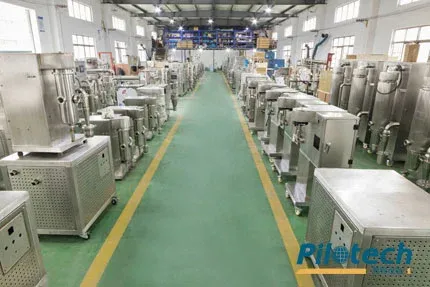

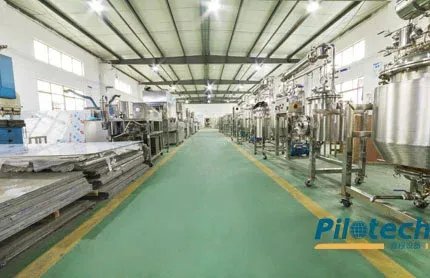

We have been focused on the research, development and production of extraction tanks used in the laboratory since 2005. The extraction tanks feature low noise and little impact on the environment, making them highly suitable for laboratory environments. In domestic markets, the extraction tank is popular among companies and universities related to food science and engineering. Exported to more than 65 countries, with 3500+ users around the world.
Our extraction equipment is suitable for small-scale, medium-scale and pilot-scale in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
* The package is standard export Tri-ply wood.
* We will use PE film for packing or pack it according to customers' special requests.
* The tri-plywood packing is very firm and suitable for sea, air, land transport, and express delivery.
