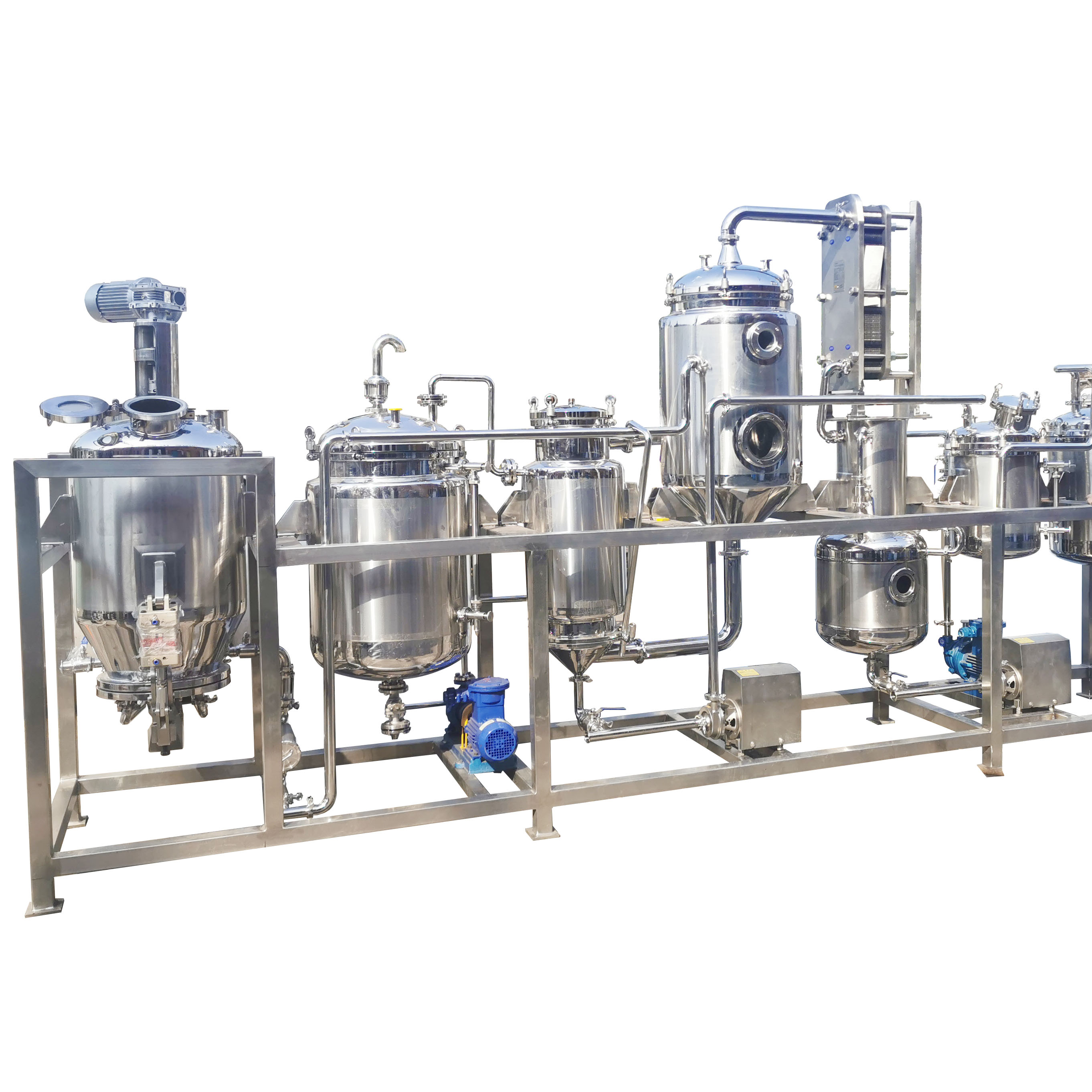

Herbal Plants Vacuum Ultrasonic Herb Extract Extraction Machine Extract Tank

Herbal plants vacuum ultrasonic herb extract extraction machine tank

Usage of Multi-Function Extractor

Multi-function upside-down taper extractor is the equipment which is widely used in medicine, biology, food, chemical leaching extraction. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling solvent in dross, which is applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on many kinds of craft. Having the advantages of high efficiency, easy to operate.

Features of Multi-Function Extractor

The research and development of the new multi-function extractor slag linkage control system consists of four cylinders, double cylinders to open the door, double cylinders contraction, and designs the safety interlock. The slag door sealing adopts a pneumatic seal design, which allows the door to be easily opened without leakage, ensuring safe and reliable operation.

Product Parameters

Model	CTN-50	CTN-100	CTN-200	CTN-300
Volume L	50	100	200	300
Evaporation capacity kg/h	20	50	80	100
Motor power kw	0.55	0.75	0.75	1.1
steam consumption kg/h	25	60	90	120
System vacuum Mpa	-0.06 to -0.08
Jacket pressure Mpa	0.09~0.03	0.09~0.03	0.09~0.03	0.09~0.03
Compressed air Mpa	0.5~0.6	0.5~0.6	0.5~0.6	0.5~0.6
Steam temperature ℃	100~125

Key Features

Combined with extracting and concentrating, making it easy to operate. It is polished on both internal and external sides in accordance with GMP requirements.

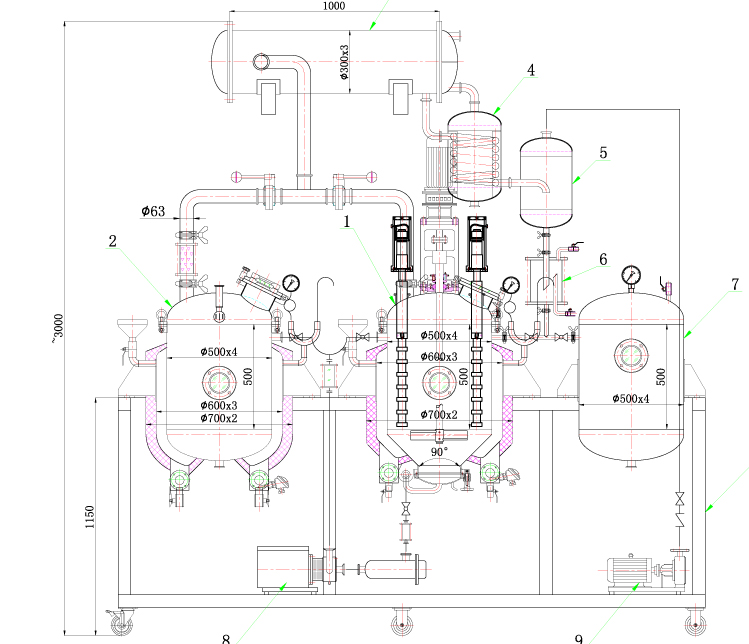

Mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator, and liquid-recycling tank, etc.
This ultrasonic Extraction and Concentration Equipment is manufactured with years of research and development, allowing for several kinds of experiments with multiple operation methods. The pipeline is specially installed.
Manufactured under sealed conditions throughout the entire process. Complete extracting and concentrating in one run with less solvent consumption and shorter extraction/concentration times.
An optional stirrer device can be installed upon request. Manual, semi-automatic, and fully-automatic types are available. Heating options include electric heating and steam heating.

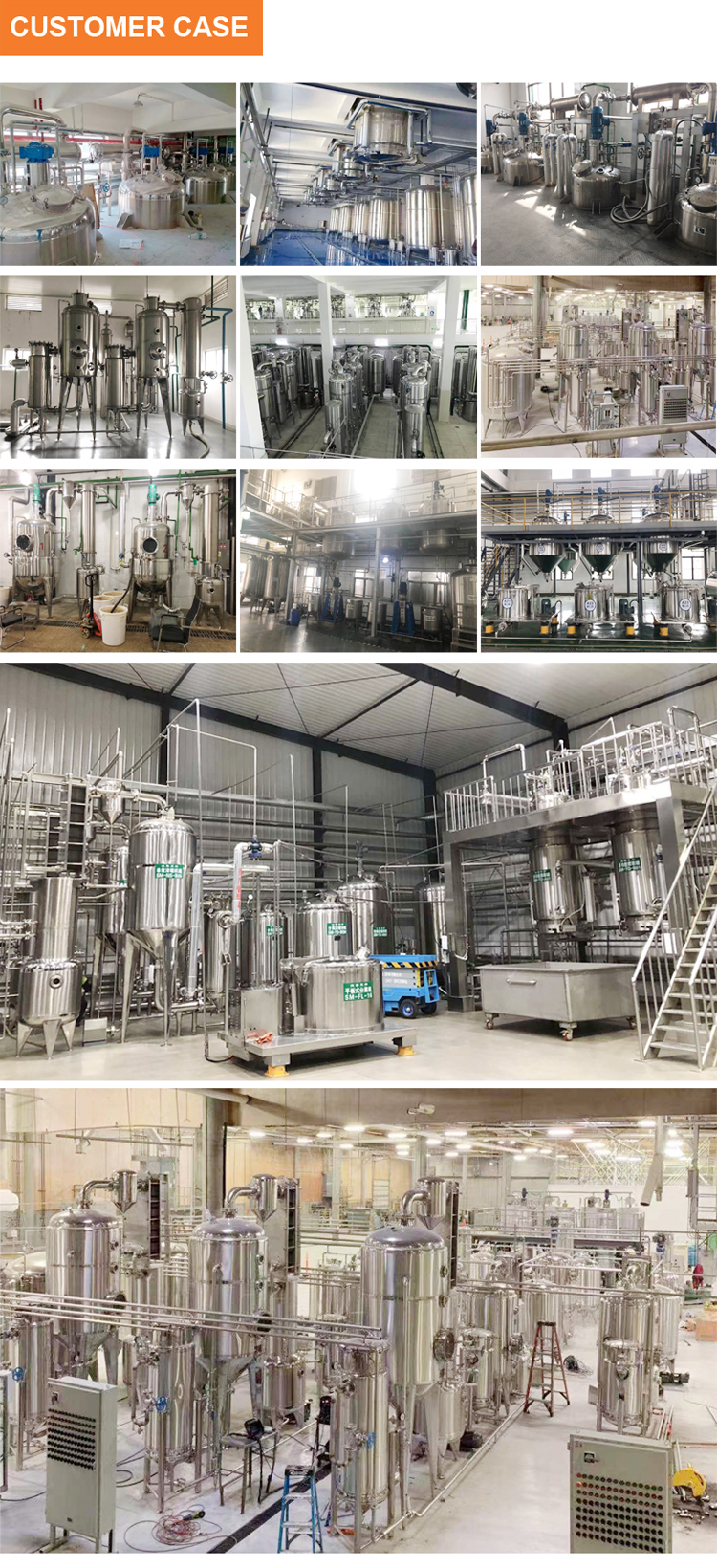

Production Facility

Modern workshops and complete manufacturing facilities are utilized for scientific and innovative production. Systems are designed to satisfy rigorous quality requirements and feature state-of-the-art fluid machinery engineering.

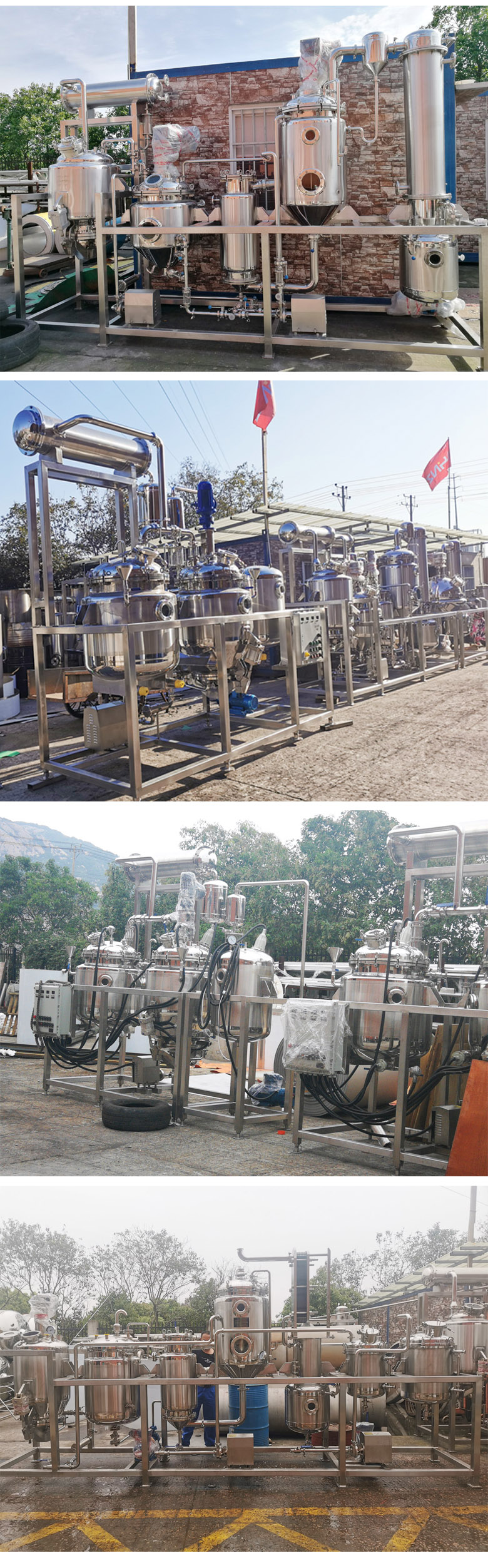

Product Packaging

Frequently Asked Questions

Q1 How can I stay updated on my order progress?

Photos or videos are taken every two weeks during the manufacturing process to keep the progress transparent. Once the equipment is finished, highly detailed photos or videos will be provided for inspection.

Q2 Can customers conduct on-site inspections?

Yes. In addition to receiving detailed inspection photos and videos, you are welcome to visit the factory to personally inspect the completed machinery.

Q3 Do you provide overseas installation support?

Yes, installation engineers can be sent to your facility to assist with installation and testing. The customer is responsible for providing round-trip airfare, accommodation, and an engineer salary of 200 USD per day.

Q4 How is quality control managed?

All materials used come with certified documentation. Prior to leaving the facility, every piece of equipment undergoes a comprehensive quality assurance inspection to guarantee it complies with all technical specifications.

Q5 What is the typical shipment schedule?

Photographs of the loading process will be sent to you as the order is packed. The container typically departs the port 3-4 days after loading. A bill of lading (including container tracking numbers) along with the final statement of account will follow within one week.

Q6 What happens if there is a delay in taking final delivery?

An Estimated Time of Arrival (ETA) notice will be sent 10 days before delivery. The delivery service will contact you 48 hours prior to schedule a time. If delivery must be delayed, a pull fee of approximately $100 and a container storage fee of approximately $150 per day will apply.
